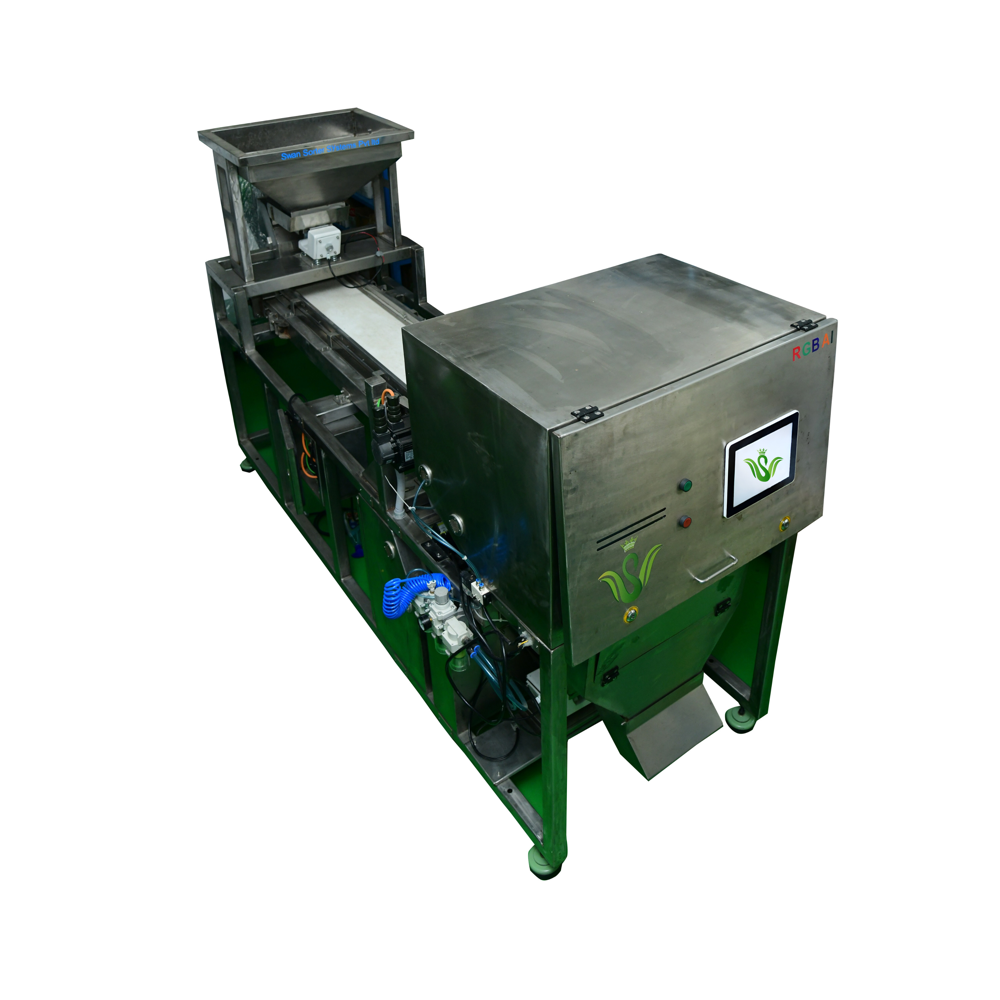

Quartz & Minerals color sorting machine

Quartz & Minerals color sorting machine Specification

Output
Up to 6 Tons/Hour

Channels
312

Capacity
2-6 Tons/Hour

Weight
1200 kg

Application
Industrial mineral processing plants

Air Compressor
Required (External, not included)

Accuracy
99.9%

Usage
Mineral and quartz stone sorting

Air Pressure
0.6-0.8 MPa

Dimension (L*W*H)
2120 mm x 1620 mm x 2040 mm

Power
3.5 kW

Type
Quartz & Minerals Color Sorting Machine

Ejector Response Time
<1 ms

Frame Material
Stainless steel SUS304

Lighting Source
LED long-life light

Noise Level
<75 dB

Reject Ratio
8:1

Feeding System
Vibratory feeder

Sorting Technology
High-resolution full-color CCD camera system

Operating Temperature
-20C to 50C

Control System
Intelligent self-learning software

Voltage
220V/50Hz

Display
10-inch touch screen panel

Quartz & Minerals color sorting machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
5 Units Per Month

Delivery Time
7 Days

About Quartz & Minerals color sorting machine

The RGB AI Model Tri-Chromatic Color Sorter Machine is a powerful sorting machine designed for industrial applications. With its multiple channels, it can accurately sort different materials based on their colors. The machine has a power range of 40-90 Watt (w), ensuring high efficiency and productivity. Its advanced technology allows it to sort materials with a tri-chromatic color system, providing high precision and accuracy. The output of the machine is normal, making it suitable for large-scale industrial operations. As a distributor, manufacturer, supplier, and we provide this machine at competitive prices, ensuring that our customers get the best value for their investment.

Advanced Color Sorting Technology

Utilizing a CCD full-color camera system and intelligent self-learning software, this machine differentiates subtle color variations for uncompromising mineral purity. The LED lighting ensures consistent detection, while swift ejectors efficiently remove unwanted particles, maximizing sorting efficiency in industrial applications.

User-Friendly Operation and Maintenance

Equipped with a 10-inch touch screen and intuitive controls, the machine streamlines operation and minimizes training time. Routine cleaning and maintenance are facilitated by its stainless steel SUS304 frame, ensuring durability and hygienic performance, while external air compressors can be quickly integrated as needed.

FAQ's of Quartz & Minerals color sorting machine:

Q: How does the Quartz & Minerals Color Sorting Machine achieve high sorting accuracy?

A: The machine uses a high-resolution full-color CCD camera system and intelligent self-learning software to identify and separate impurities from quartz and minerals, achieving a sorting accuracy of up to 99.9%.

Q: What is the process for operating the sorting machine?

A: After connecting to an external air compressor and supplying the correct voltage, materials are fed via the vibratory feeder. The camera system scans and detects impurities, and the ejector system removes them at high speed, all managed through the intuitive 10-inch touchscreen display.

Q: When should the machine be used in the mineral processing workflow?

A: This color sorting machine is ideal for post-crushing and pre-packaging stages, where precise removal of unwanted stones or foreign materials is necessary to ensure final product purity before shipment or further processing.

Q: Where can this sorting machine be installed?

A: It is suitable for industrial mineral processing plants, especially those processing quartz and similar minerals, requiring a stable power supply (220V/50Hz), and space to accommodate its dimensions: 2120 mm x 1620 mm x 2040 mm.

Q: What are the main benefits of using this color sorting machine for mineral processing?

A: Key benefits include significantly improved product quality, reduced labor costs, increased throughput (up to 6 tons/hour), and reliable performance in demanding environments, with minimal maintenance due to its durable stainless steel construction.

Q: How does the machine ensure durability and low maintenance?

A: The frame is built from stainless steel SUS304, which resists corrosion and wear. The LED long-life lighting source and user-friendly maintenance design help minimize downtime and extend equipment lifespan.
