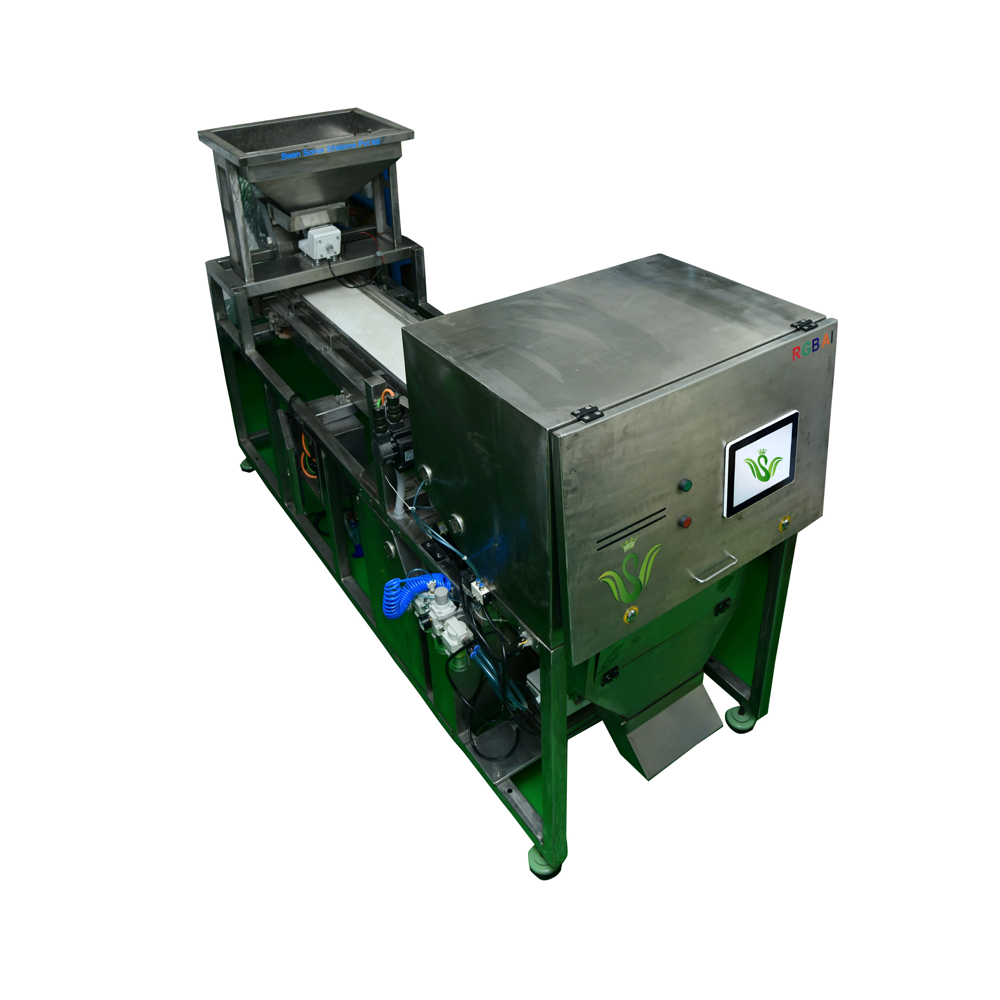

Quartz color sorter

Quartz color sorter Specification

Application
Quartz, Minerals, Stones

Dimension (L*W*H)
1620 mm 1500 mm 2000 mm

Output
Adjustable

Air Compressor
Required (Not included)

Usage
Industrial Quartz Sorting

Air Pressure
0.6-0.8 MPa

Power
2.5 kW

Weight
650 kg

Capacity
0.8-3 Tons/Hour

Type
Quartz Color Sorter

Accuracy
99%

Channels
64

Defective Material Removal
Automatic Ejector System

Operating Temperature
-10C to +40C

Material
Stainless Steel Body

Reject Ratio
8:1

Noise Level
75 dB

Sorting Modes
Color, Shape, Size

Data Storage
Built-in Memory with USB Export

Voltage
220V / 50Hz

Touch Screen
7-inch TFT Display

Sorting Technology
CCD Camera-based

About Quartz color sorter

The RGB AI Model Tri-Chromatic Color Sorter Machine is a powerful sorting machine designed for industrial applications. With its multiple channels, it can accurately sort different materials based on their colors. The machine has a power range of 40-90 Watt (w), ensuring high efficiency and productivity. Its advanced technology allows it to sort materials with a tri-chromatic color system, providing high precision and accuracy. The output of the machine is normal, making it suitable for large-scale industrial operations. As a distributor, manufacturer, supplier, and we provide this machine at competitive prices, ensuring that our customers get the best value for their investment.

Superior Sorting Performance for Quartz Processing

Engineered with CCD camera-based recognition, this sorter delivers exceptional accuracy for separating quartz, minerals, and stones. Its 64 channels and automatic ejection system work efficiently to detect and remove defects in real-time, ensuring your output is consistent and meets demanding industry standards. Users benefit from adjustable capacity and an intuitive 7-inch TFT display, simplifying operation in varying industrial conditions.

Built for Industrial Durability and Efficiency

The machine's stainless steel construction is ideal for industrial use, providing lasting durability even under continuous operation. Capable of sorting at temperatures from -10C to +40C and equipped for easy cleaning and maintenance, this color sorter fits seamlessly into mineral processing environments. The low noise level (75 dB) and USB data export further enhance user convenience.

FAQ's of Quartz color sorter:

Q: How does the CCD camera-based sorting technology enhance accuracy in the Quartz Color Sorter?

A: The integrated CCD camera system captures high-resolution images of materials on the conveyor, allowing the sorter to precisely detect and separate quartz and other minerals based on color, shape, and size. This enables a sorting accuracy of 99%, significantly reducing manual intervention.

Q: What materials and applications is this color sorter suitable for?

A: This sorter is primarily designed for industrial-scale sorting of quartz, but it also efficiently separates various minerals and stones. It is suitable for mining, mineral processing, and stone-related applications where consistent quality and removal of defective particles are required.

Q: When should I use the adjustable output feature?

A: The adjustable output function allows users to control and customize the capacity between 0.8 and 3 tons per hour, depending on production requirements. Adjust this setting when you need to scale your operations or handle varying qualities or quantities of raw material.

Q: Where can data from the sorting process be stored or exported?

A: Sorting process data is stored in the machine's built-in memory, and it can be easily exported via the integrated USB port. This feature ensures secure record-keeping and facilitates performance analysis or quality assurance reporting.

Q: What is the process for removing defective materials?

A: The system identifies unwanted particles using CCD cameras, and then the automatic ejector system removes these defects efficiently and with minimal product loss. The reject ratio of 8:1 ensures the majority of faulty material is separated from quality output.

Q: How does the automatic ejector system improve overall sorting efficiency?

A: By automating the removal of defective materials, the ejector system minimizes manual effort, speeds up the sorting process, and maintains uniform output. This increases throughput and ensures higher purity in sorted products.

Q: What are the primary benefits of using this quartz color sorter in your facility?

A: Investing in this sorter improves product quality, decreases labor costs, and increases processing speed. Its robust design, high accuracy, data management capability, and operational flexibility make it a valuable asset for industrial mineral sorting needs.
